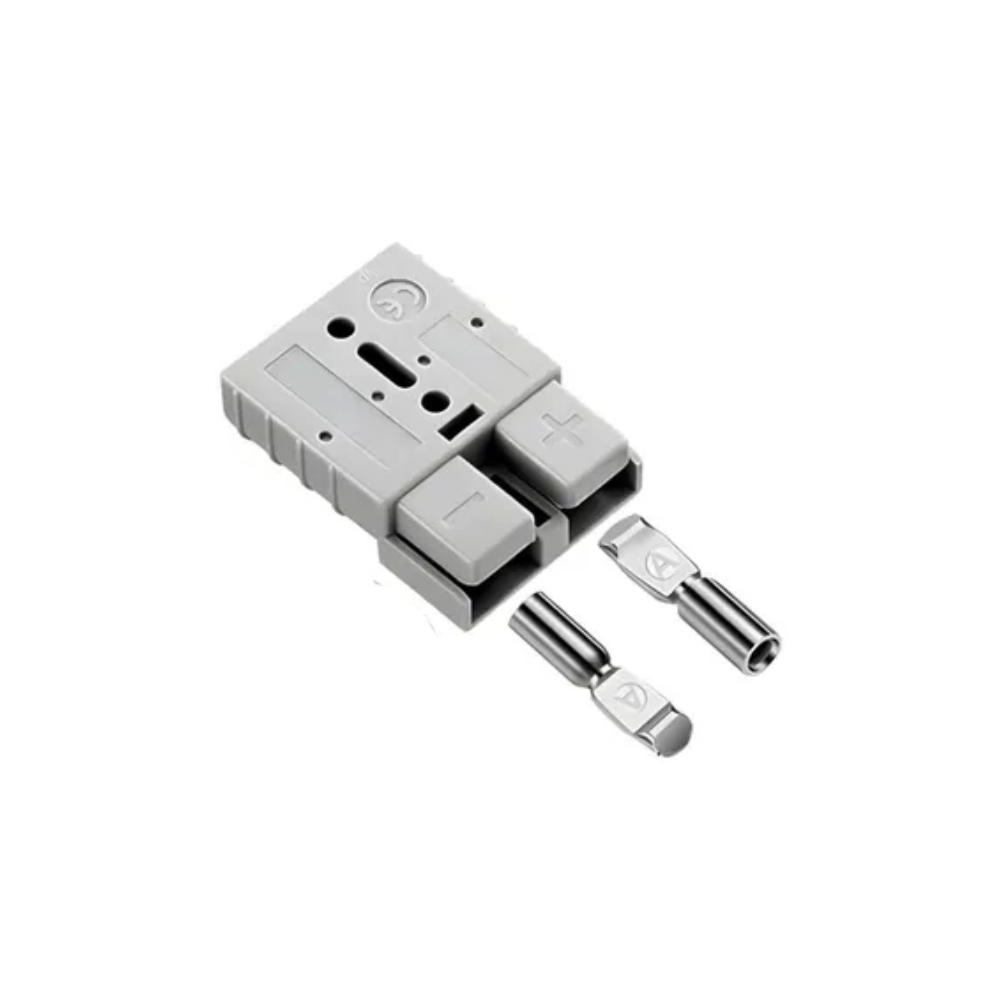

Anderson Plug Grey 50A (2 Pack)

The Anderson Plug Grey 50A (2 Pack) is a durable quick connector designed for DC power applications. Also known as a Brad Harrison plug, it provides a reliable connection for 12V batteries, solar panels, portable camping fridges and other DC-powered equipment.

The 50A Anderson plug accommodates cables up to 16mm and features silver-plated copper contacts for excellent conductivity and a secure connection. The male and female connectors allow for quick and easy connection and disconnection.

Product Information:

Colour: Grey
Pins: 2
Rated Current: 50A
Rated Voltage: 600V
Cable Capacity: Up to 16mm
Insulation Resistance: 5000MΩ
Connection/Disconnect Force: 95 ± 5N
Contact/Disconnect Cycles: Up to 10,000 without load
Hot Plug Rating: 40A at 120V, 250 cycles
Flammability: UL94 V-0
Certification: ISO9001 / TS16949
Contact Material: Silver-plated copper
Terminal Material: Red copper
Ideal for connecting solar panels, camping fridges, batteries and other DC power equipment.
